Introduction

Pressure vessels are integral components across various industries, including oil and gas, chemical manufacturing, power generation, and pharmaceuticals. These specialized containers are designed to hold gases or liquids at pressures significantly different from ambient conditions. Given their critical role, understanding the design, materials, standards, and maintenance of pressure vessels is essential for ensuring safety and efficiency in industrial operations.

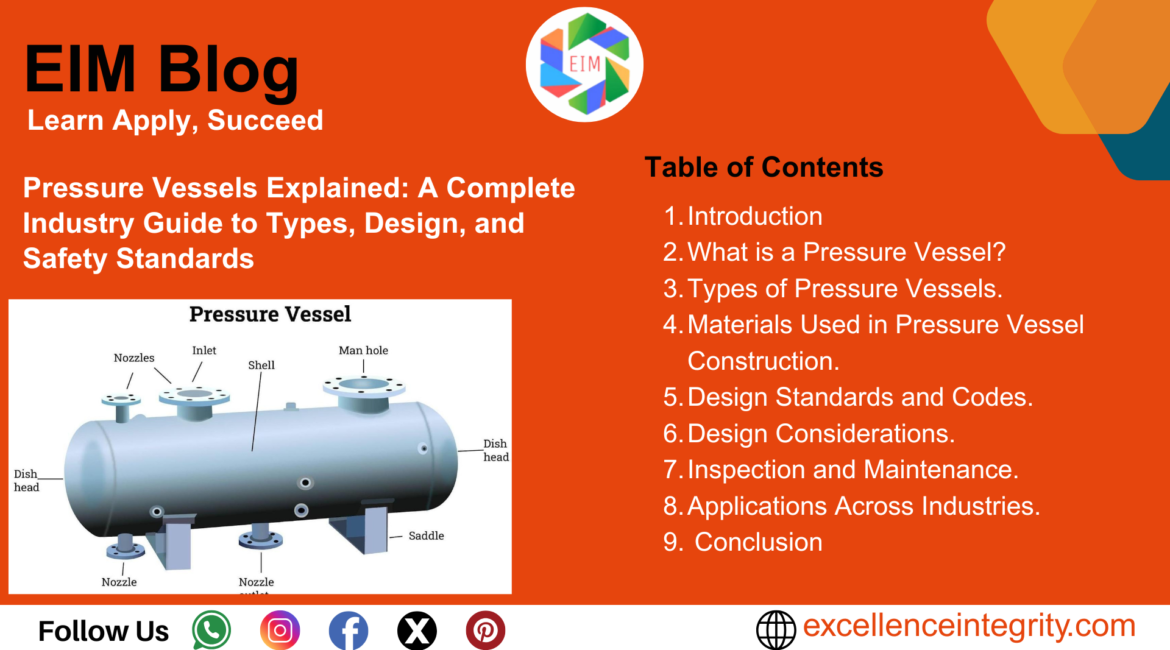

Table of Contents

1. What is a Pressure Vessel?

2. Types of Pressure Vessels

3. Materials Used in Pressure Vessel Construction

4. Design Standards and Codes

5. Design Considerations

6. Inspection and Maintenance

7. Applications Across Industries

8. Conclusion

What is a Pressure Vessel?

A pressure vessel is a sealed container engineered to hold substances under pressure, either higher or lower than the surrounding atmosphere. Common examples include boilers, heat exchangers, reactors, and storage tanks. These vessels can vary in size and shape, from small cylinders to large industrial tanks, and are typically constructed from materials like carbon steel, stainless steel, aluminum, and specialized alloys, depending on the application requirements.

Types of Pressure Vessels

Pressure vessels are categorized based on their function and design:

1. Storage Vessels

These vessels store liquids, vapors, or gases for future use or processing. Examples include compressed natural gas (CNG) tanks and liquid nitrogen containers.

2. Heat Exchangers

Used to transfer heat between fluids, heat exchangers are vital in industries like food processing, pharmaceuticals, and energy. They are designed considering the thermal and flow properties of the involved fluids.

3. Boilers

Boilers generate steam by heating water, which is then used for various applications, including power generation and heating. They must withstand high temperatures and pressures, making material selection and design critical.

4. Process Vessels

These vessels facilitate chemical reactions, mixing, distillation, and other processes. They are designed to handle varying pressures and temperatures based on the specific industrial process.

Materials Used in Pressure Vessel Construction

Selecting appropriate materials is crucial for the safety and longevity of pressure vessels. Common materials include:

• Carbon Steel: Widely used due to its strength and affordability.

• Stainless Steel: Offers excellent corrosion resistance, making it suitable for chemical and food industries.

• Aluminum: Lightweight and corrosion-resistant, ideal for certain applications.

• Nickel Alloys: Provide high-temperature and corrosion resistance.

• Titanium: Known for its strength and corrosion resistance, used in specialized applications.

The choice of material depends on factors like operating pressure, temperature, and the nature of the contained substance.

Design Standards and Codes

Pressure vessels must adhere to stringent design codes to ensure safety and compliance:

ASME Boiler and Pressure Vessel Code (BPVC)

The ASME BPVC is a widely recognized standard governing the design, fabrication, and inspection of pressure vessels. Section VIII of the code specifically addresses pressure vessels and is divided into three divisions:

• Division 1: Covers vessels operating at internal or external pressures exceeding 15 psig, using a design-by-rule approach.

• Division 2: Applies to vessels with pressures up to 10,000 psig, employing a design-by-analysis method for more detailed assessments.

• Division 3: Pertains to high-pressure vessels exceeding 10,000 psig, with specialized design considerations.

EN 13445

This European standard provides guidelines for the design and fabrication of unfired pressure vessels, aligning with the Pressure Equipment Directive (2014/68/EU). It ensures uniform safety standards across EU member states.

Design Considerations

Designing a pressure vessel involves multiple factors:

• Operating Pressure and Temperature: Determines the vessel’s wall thickness and material selection.

• Corrosion Allowance: Additional thickness is added to account for material loss over time.

• Stress Analysis: Ensures the vessel can withstand internal and external pressures without failure.

• Safety Features: Incorporation of pressure relief devices and other safety mechanisms.

Engineers use formulas and guidelines, such as those provided in API 579, to assess the fitness for service of pressure vessels, especially those that have been in operation and may have experienced degradation.

Inspection and Maintenance

Regular inspection and maintenance are vital for the safe operation of pressure vessels:

• Visual Inspection: Identifies surface defects, corrosion, and other visible issues.

• Ultrasonic Testing: Detects internal flaws and measures wall thickness using high-frequency sound waves.

• Hydrostatic Testing: Involves filling the vessel with water and pressurizing it to check for leaks and structural integrity.

Adhering to inspection schedules and maintenance protocols helps prevent accidents and extends the vessel’s service life.

Applications Across Industries

Pressure vessels are utilized in various sectors:

• Oil and Gas: For storage and processing of hydrocarbons.

• Chemical Manufacturing: In reactors and storage tanks for chemicals.

• Power Generation: Boilers and heat exchangers in power plants.

• Pharmaceuticals: Sterile vessels for drug manufacturing processes.

• Food and Beverage: Storage and processing of ingredients under controlled conditions.

Each application demands specific design and material considerations to meet industry standards and operational requirements.

Conclusion

Pressure vessels are indispensable in modern industry, facilitating the storage and processing of substances under pressure. Understanding their design, materials, standards, and maintenance is crucial for ensuring safety and efficiency. Adherence to established codes like ASME BPVC and EN 13445, along with regular inspections, ensures these vessels operate reliably throughout their service life.

For professionals seeking to deepen their knowledge, specialized training programs and certifications are available, offering insights into the latest standards and best practices in pressure vessel design and maintenance.
